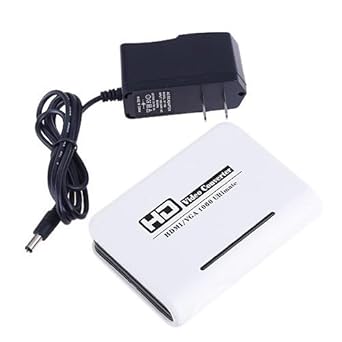

Electronics-Bilins HDV-331 HDMI2VGA HDMI to VGA Converter Bypass High-definition Video Converter

Published on by accessories

Product Description

Introduction

Bilins HDV-331 HDMI2VGA HDMI to VGA Converter Bypass High-definition Video Converter is a high-definition video converter which convert HDMI digital signal to VGA analog signal and analog audio signal .HDMI signals can connect PS3, XBOX360, Blu-ray DVD, HD set-top boxes, CRT / LED Display etc. So that you can watch HD Video on the normal TV which without HDMI Interface. HDMI to VGA Converter applied with digital convert chip. Will convert HDMI digital signal to VGA analog signal. And the signal without any damage. Support HDMI output 1080P/1.3V.

Features

1. No need any software, plug and play
2. All the hardware conversion processing, with images of high definition, good brightness, high image quality
3. Bilins HDV-331 HDMI2VGA HDMI to VGA Converter Bypass High-definition Video Converter  Support HDMI1.3 version (compatible with 1.0/1.1/1.2), automatic detection HDCP4. Small, mobile and strong





Specifications

1.HDMI enter ---- HDMI Input formats: 480P/720P / 1080I/1080P/60Hz
2.VGA output :----- VGA Output Resolution: will change with the input of the HDMI signal change.
640*480@60Hz¡; 800*600@60Hz¡;
1024*768@60Hz¡; 1280*720@60Hz¡;
1280*768@60Hz¡; 1280*800@60Hz¡;
1280*1024@60Hz¡; 1360*768@60Hz¡;
1600*1200@60Hz¡; 1920*1080@60Hz
(This resolution requires the back-end display devices support.Output and input synchronization )

3. Audio Output Format: Analog Stereo Audio (0.5 ~ 1.5 Voltsp-p)
4. Power Adapter: AC100 ~ 240V DC output power supply switch DC/5V
